Chem 10 - Common Lab Measurements - Part C Data

You are looking at data set #63. Be sure to record this data set in your lab manual.

Use the pictures here to record measurements in part C of your lab. Be sure that you were directed to this page from the "Common Lab Measurements Data" quiz (and not just a URL from your friend.) Canvas records which data set you were assigned.

10 mL Graduated Cylinder

Empty 10 mL graduated cylinder for drawing markings

10 mL graduated cylinder close up

10 mL graduated cylinder filled. Record this volume in your lab manual. The first picture shows the graduated cylinder on a plain background. The second picture shows the same cylinder with a finger behind it, which can sometimes help with finding the bottom of the meniscus.

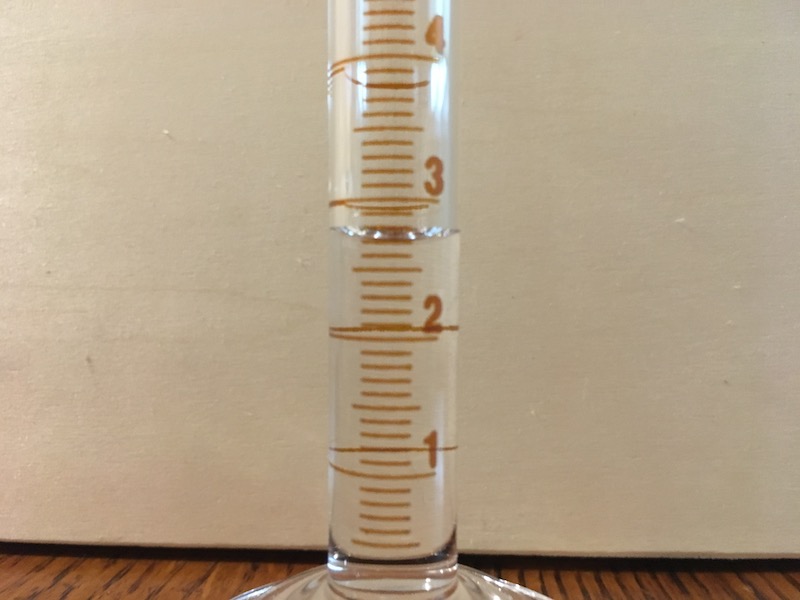

10 mL graduated cylinder filled for measurement practice

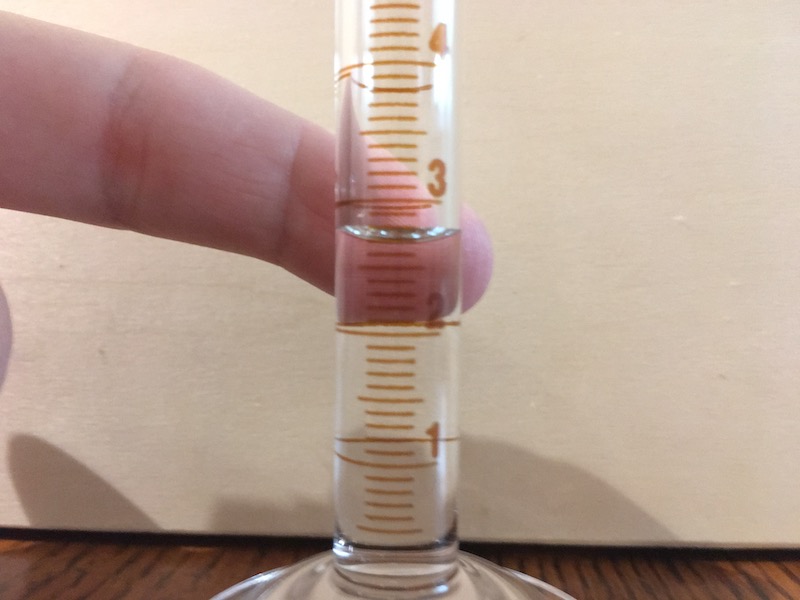

Graduated cylinder with finger for contrast to help see the bottom of the meniscus.

10 mL graduated cylinder filled for measurement practice

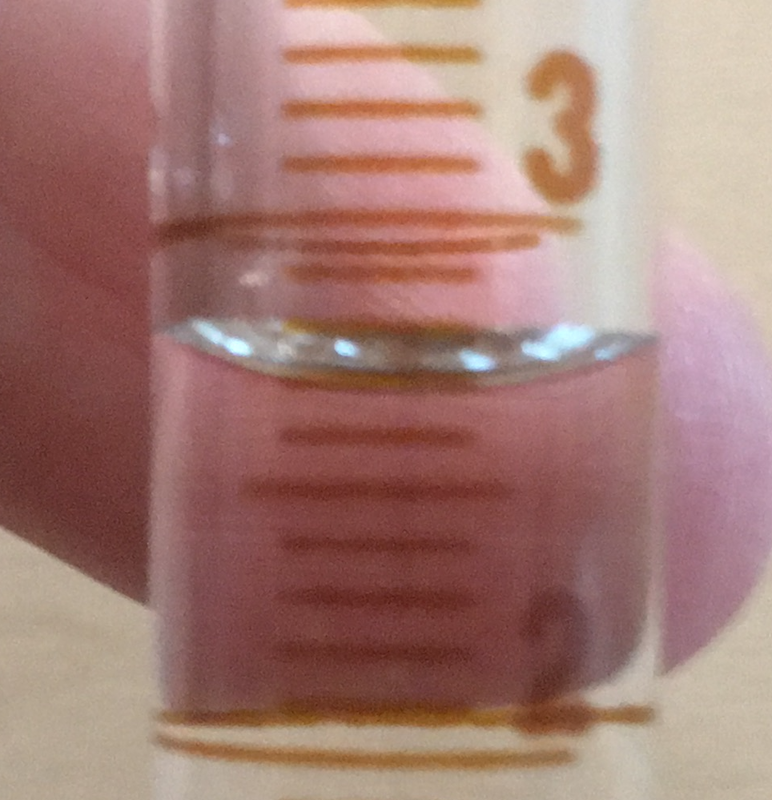

Close up of the cylinder with the contrast

Close up of 10 mL graduated cylinder for reading

50 mL Graduated cylinder

Empty 50 mL graduated cylinder for drawing markings

50 mL graduated cylinder close up

50 mL graduated cylinder filled. Record this volume in your lab manual. The first picture shows the graduated cylinder on a plain background. The second picture shows the same cylinder with a finger behind it, which can sometimes help with finding the bottom of the meniscus.

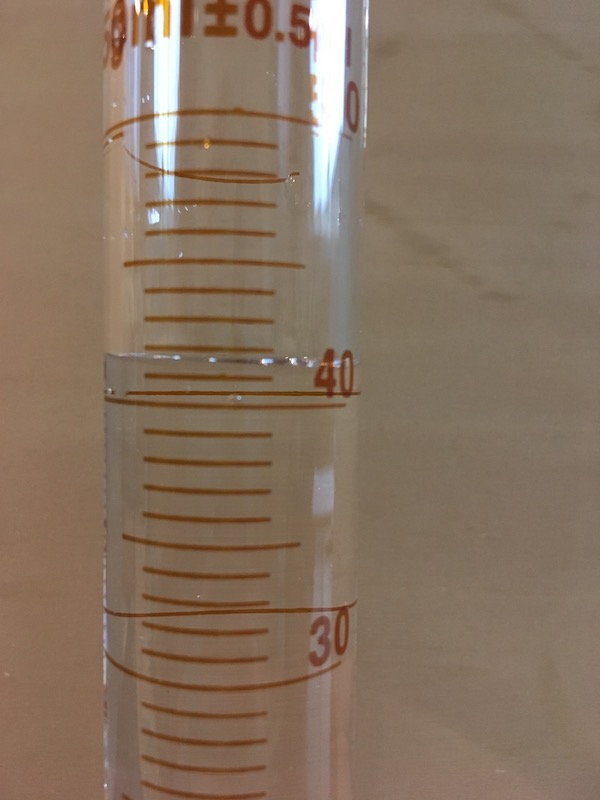

50 mL graduated cylinder filled for measurement practice

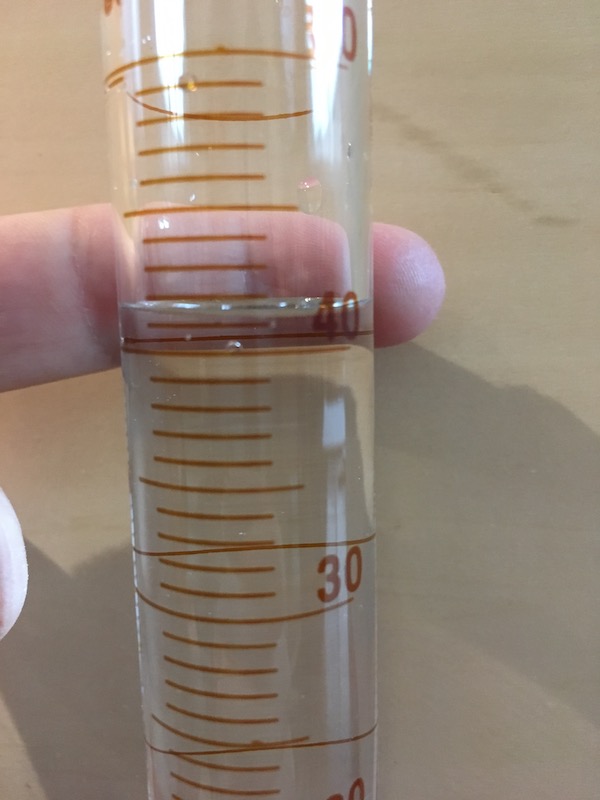

Graduated cylinder with finger for contrast to help see the bottom of the meniscus.

10 mL graduated cylinder filled for measurement practice

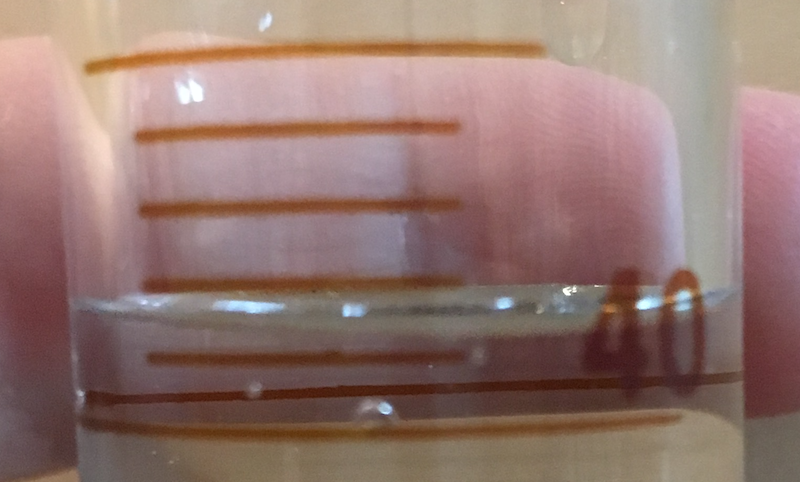

Close up of the cylinder with the contrast

Close up of 50 mL graduated cylinder for reading
